OST-BDN-GRY
Heavy item handling surcharge applied at checkout
These tiles offer a shock-absorbent surface that cushions impacts, providing a 10-15% softer feel compared to hard concrete, enhancing comfort and reducing strain during play.

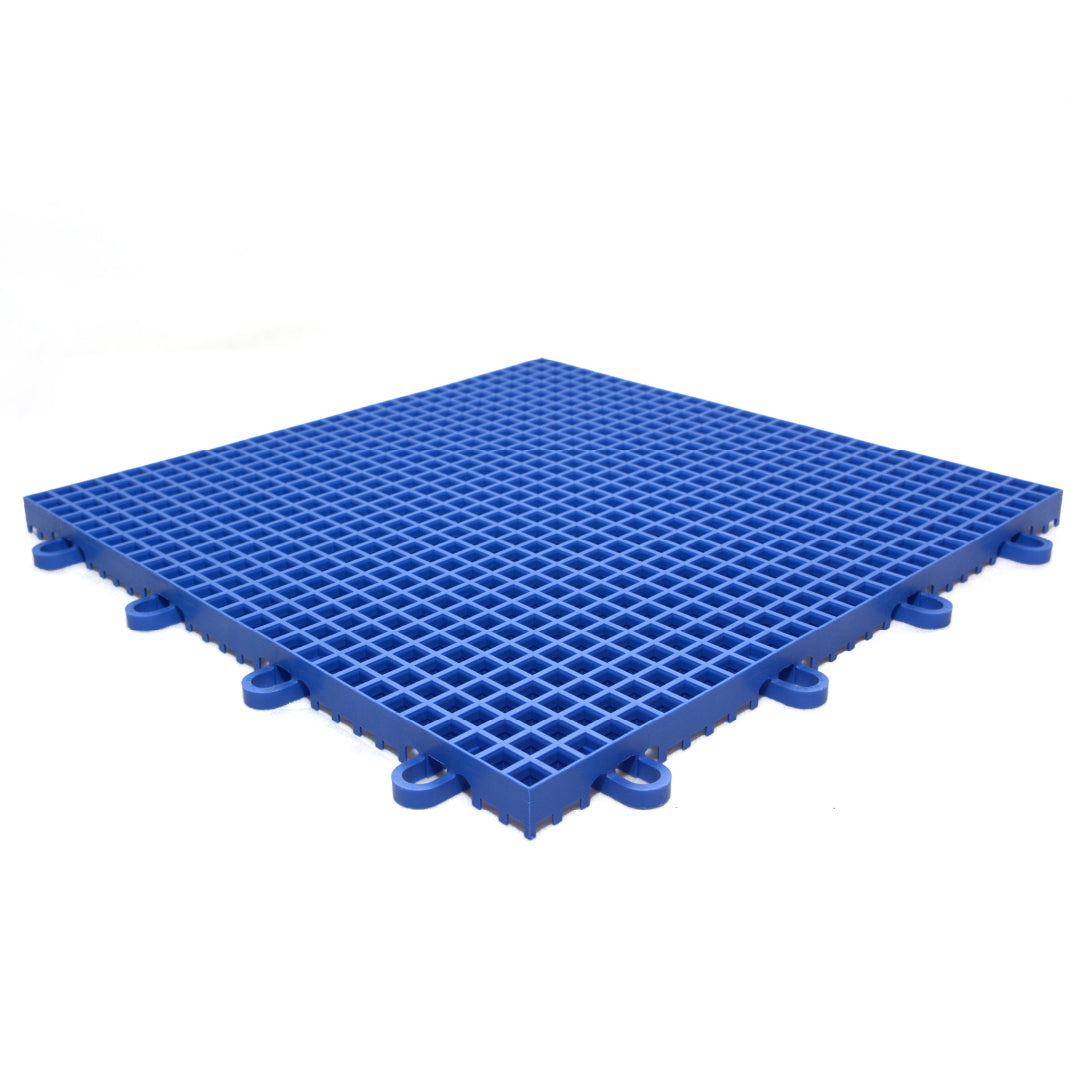

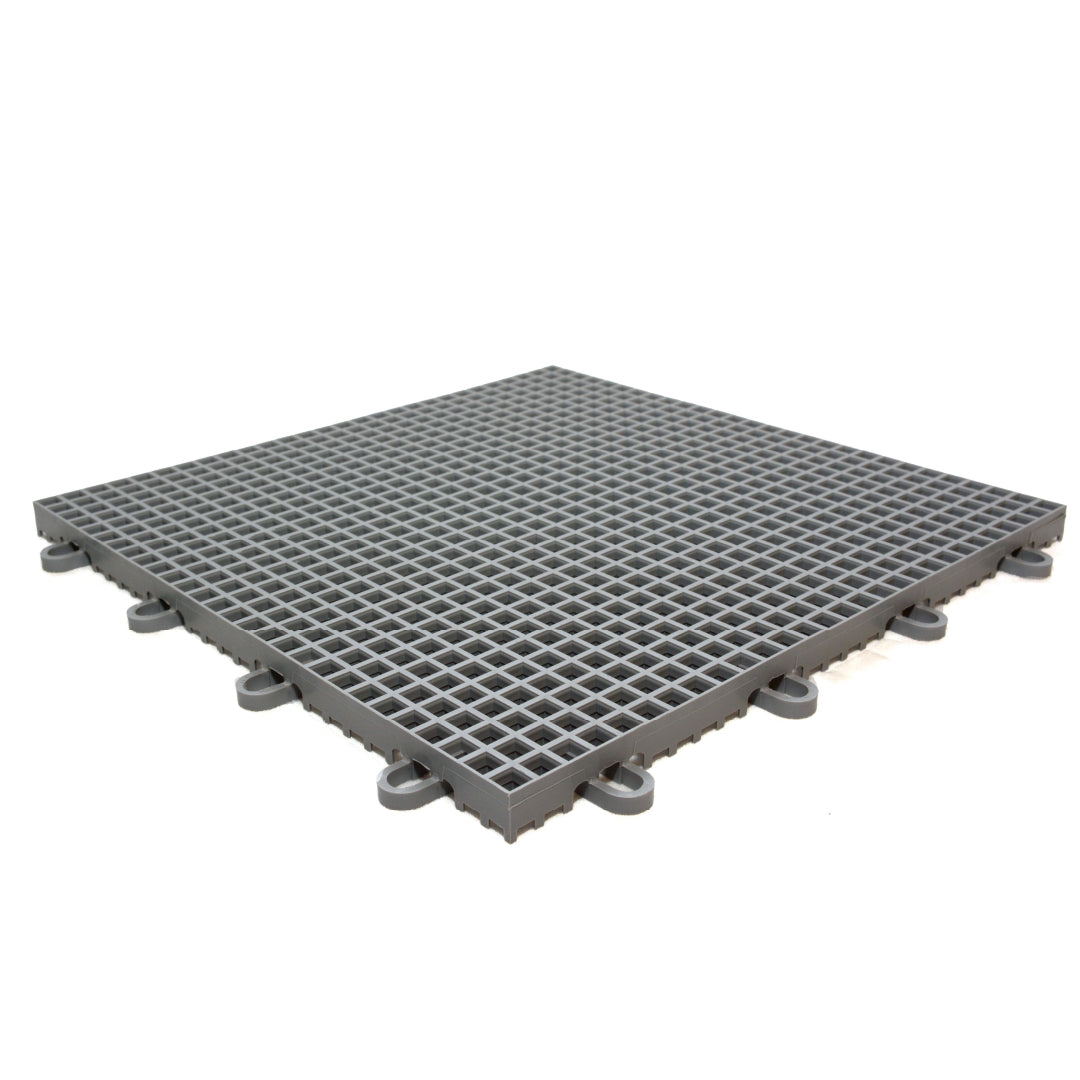

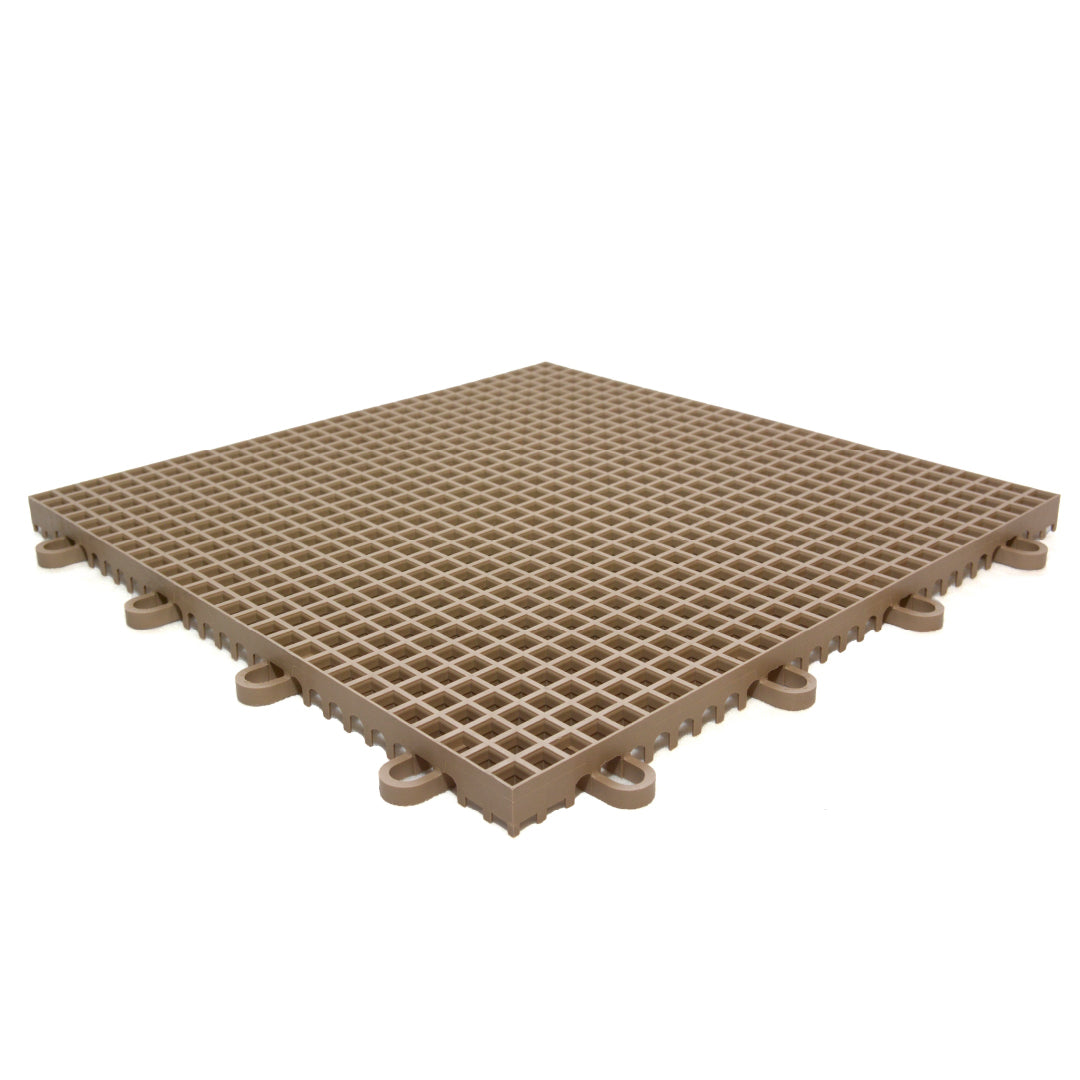

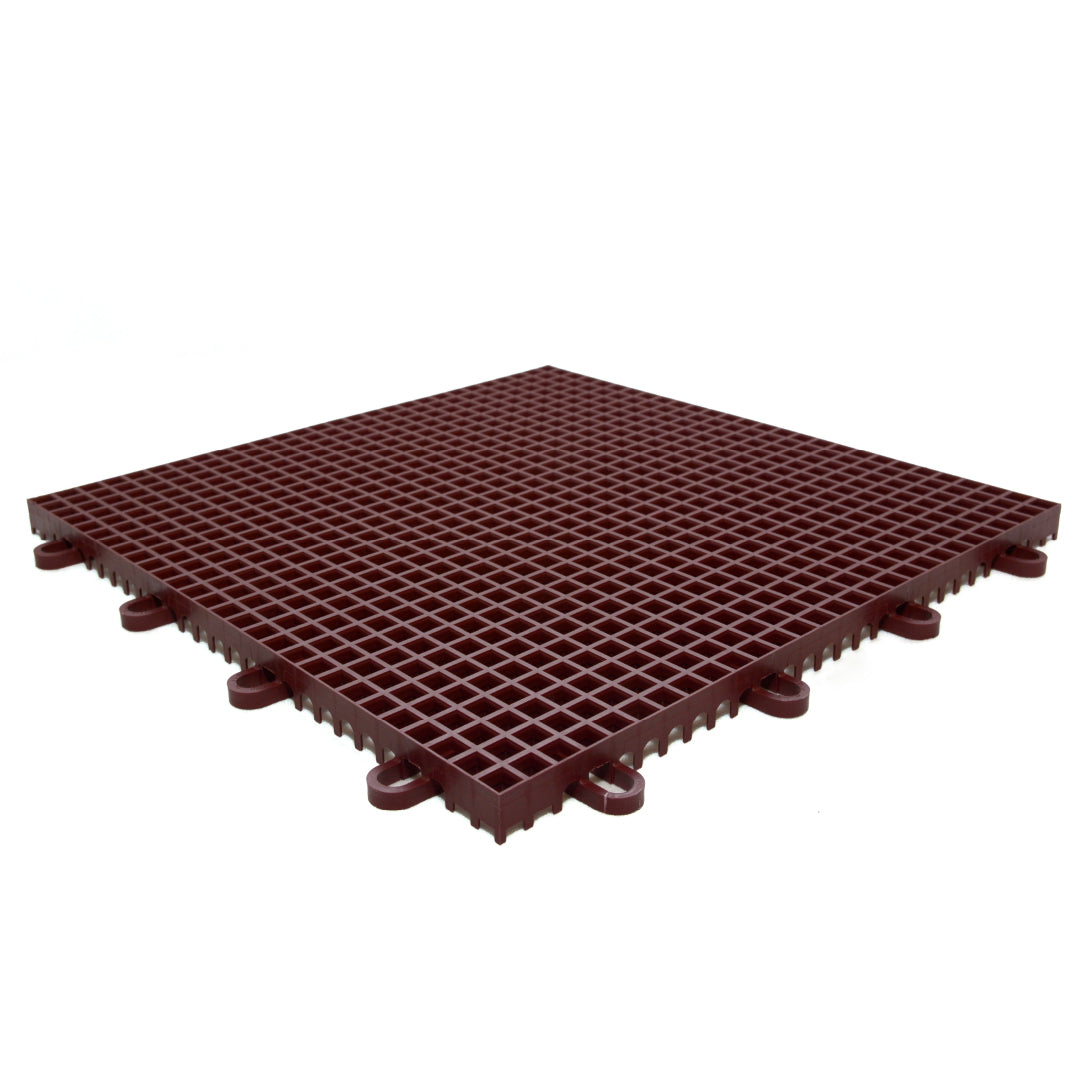

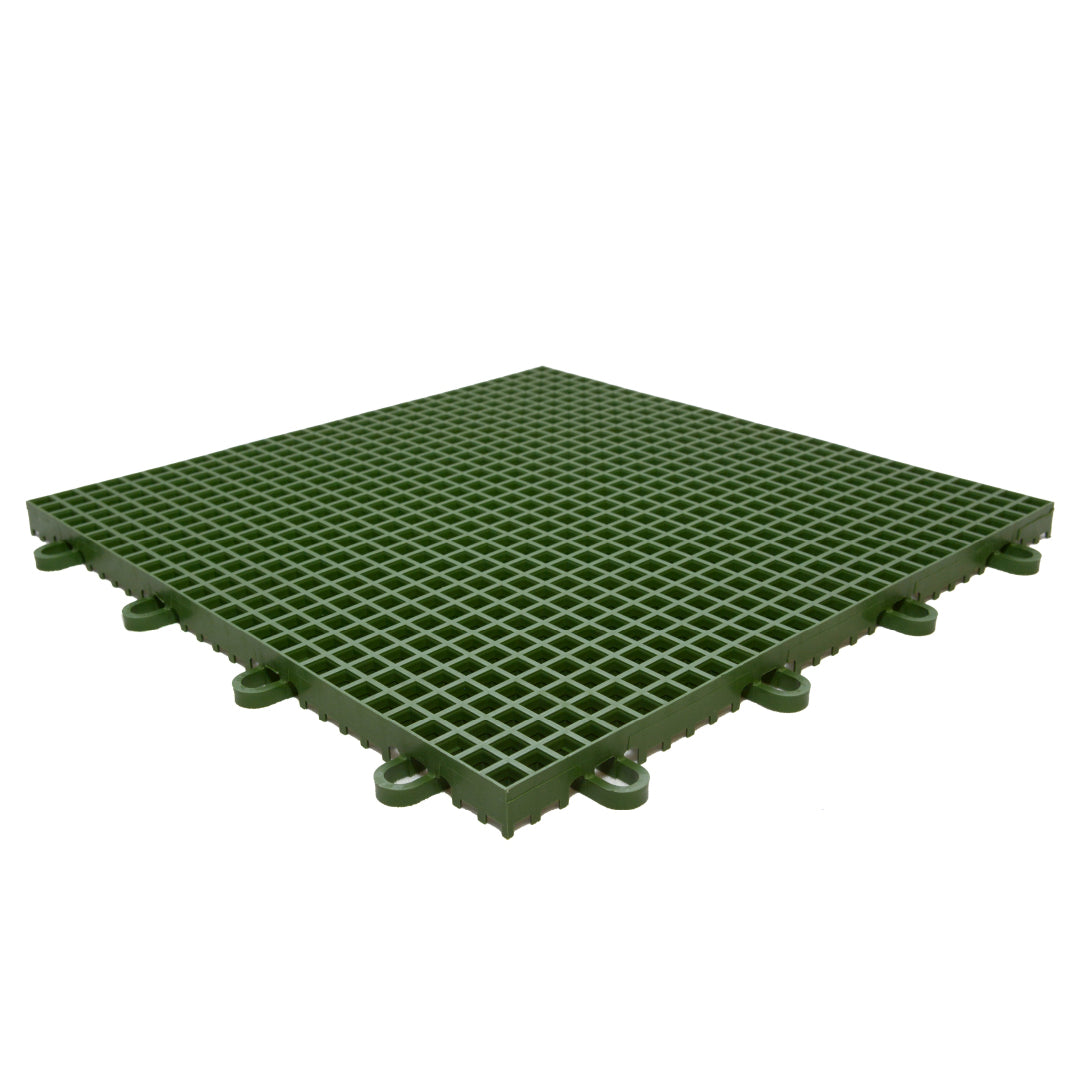

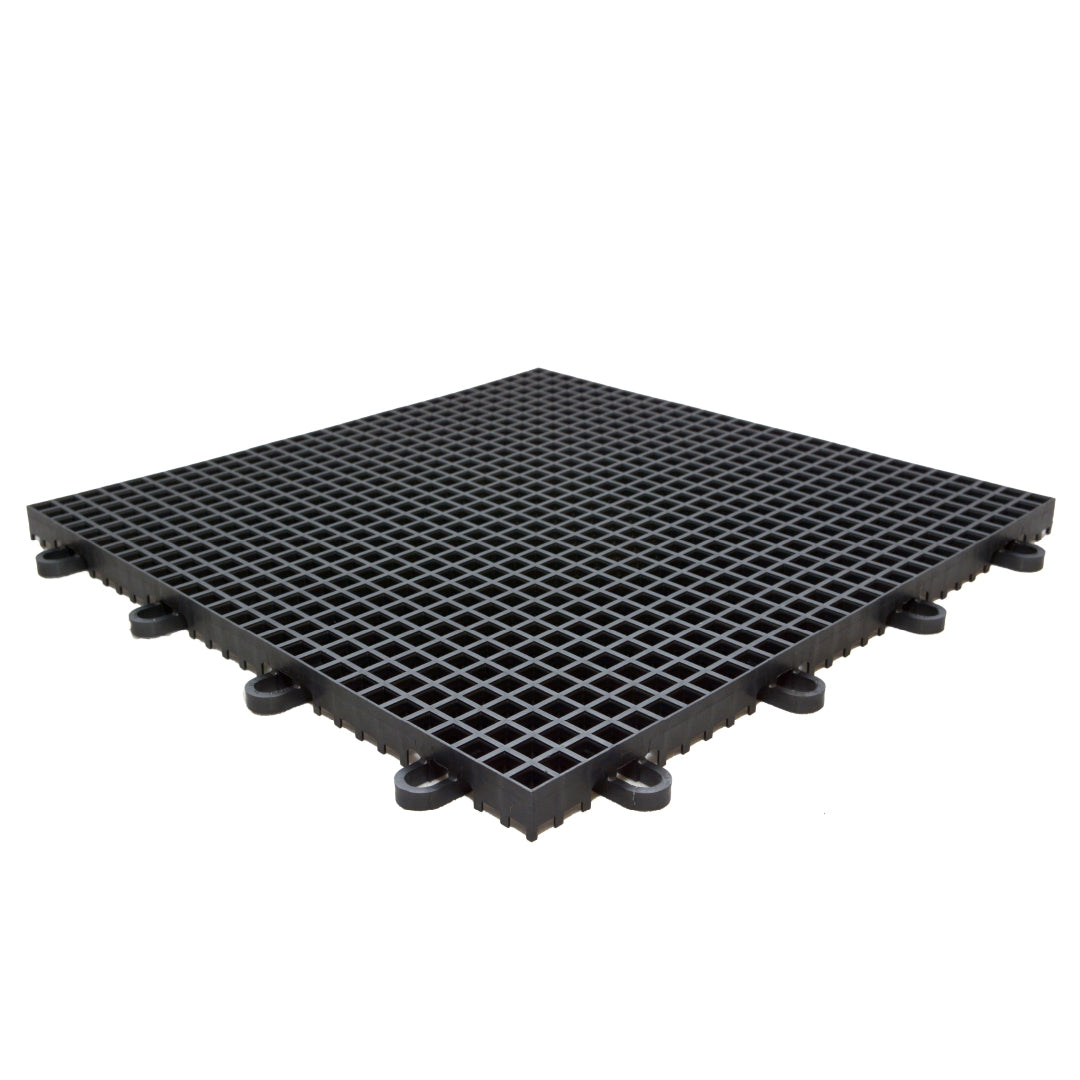

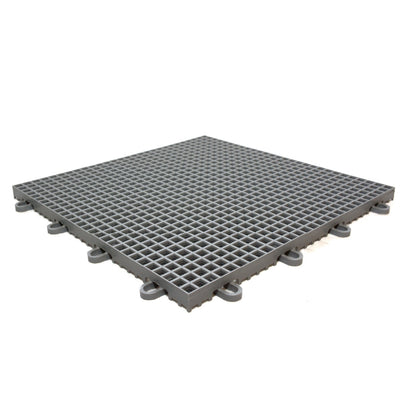

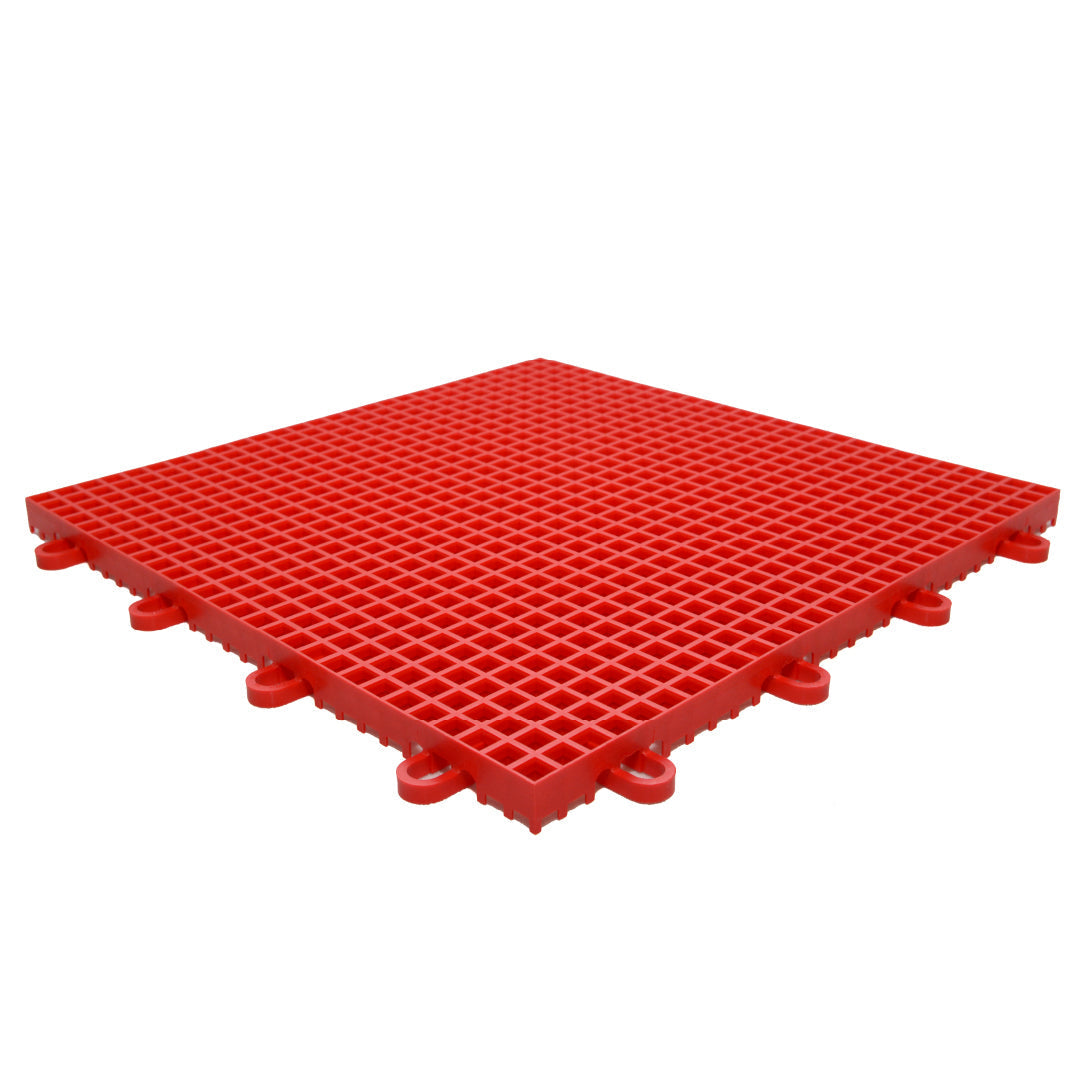

These strong modular tiles comes in 7 vibrant colors that are easy to work with and offer endless configuration possibilities, from single courts to multi-court complexes, providing a high-quality surface tailored to your specific needs and achieving a look that's uniquely yours.
Complete your outdoor court with Outdoor Sport Tile Edging.
Note: Due to different lighting situations, colors seen may not accurately reflect the actual color.
Requires preferably level concrete, asphalt pad, or compacted stone base pad for proper installation.
| Dimension | 12" x 12" x 5/8" (30.48cm x 30.48cm x1.59cm) |
| Weight | 13 oz (370.59 g) |
| Material | Solid Polypropylene Tile |
| Flame Spread Index (ASTM E 84) | 90 |
| Smoke Generation (ASTM E 84) | 90 |
| Friction (ASTM C 1028) | Dry: 0.68, Wet: 0.67 |
| Compression vs. Crush (ASTM D 3998) | No Break |
| Noise Reduction Coefficient (ASTM C 423) | 5 – 10% |
| Rolling Load (DIN 18032-02) | Pass |
| Standard Deformation (DIN 18032-02) | 0.9 mm |
| Ball Rebound (DIN 18032-02) | 98% |
| Load Bearing Capacity (DIN 18032-02) | 180 psi |
| R-Value | x<1 |
| Flatness | 0.0 mm |
| Lateral Movement | 0.00” – 0.035” |
Q: What type of base is required for installing Outdoor Badminton Court Tiles?
A: Outdoor Badminton Court Tiles require a preferably level concrete, asphalt pad, or compacted stone base pad for proper installation.
Q: Can Outdoor Badminton Court Tiles be installed on a grass base?
A: No, Outdoor Badminton Court Tiles are not suitable for installation on a grass base.
Q: Can Outdoor Badminton Court Tiles be installed on a rubber surface?
A: No, Outdoor Badminton Court Tiles are not compatible with rubber surfaces.
Q: Is it safe to drive over Outdoor Badminton Court Tiles?
A: No, driving over the tiles can disengage or break them. It is not recommended to drive over Outdoor Badminton Court Tiles.
Q: What other suitable sports can we use the Outdoor Badminton Court Tiles for?
A: Outdoor Badminton Court Tiles are suitable for Basketball, Volleyball, Roller Hockey, and Badminton. They are not suitable for tennis or pickleball.
• 4" Minimum compactable base material to grade
• Concrete pad 4" thick with 6" thickened edge
• 3000 psi mix
• Light broom finish
• Steel reinforcement ⅜" steel rebar 24" – 36" on center
• Slope/crown ½" – 1" per 16' ( ¼% – ½% slope)
• Saw cut expansion joints between 12' and 15' squares
Download PDF for more details.
There are two parts to the inter-locking system:
All tiles on any given installation should always have the female loops going in the same direction. (Illustration 1)
CAUTION: If you inadvertently rotate a tile 90 degrees it will snap into place (Illustration 2)but you will not be able to complete the installation properly.
It is important that all debris be removed from the underlying surface before laying tiles,
eliminating lumps.
ASSEMBLY
Always begin the installation in one corner. Pointing the female loops in the direction that
additional tiles are to be added. (Illustration 3)
Count on our cutting-edge sports technology and innovative sports tile
to elevate every shot, jump, kick, and serve, ideal for outdoor sports.
Refine the look of your outdoor sports court with our Outdoor Sport Tile Edging. These edges effortlessly snap into place, providing a neat, beveled border for a polished finish.
